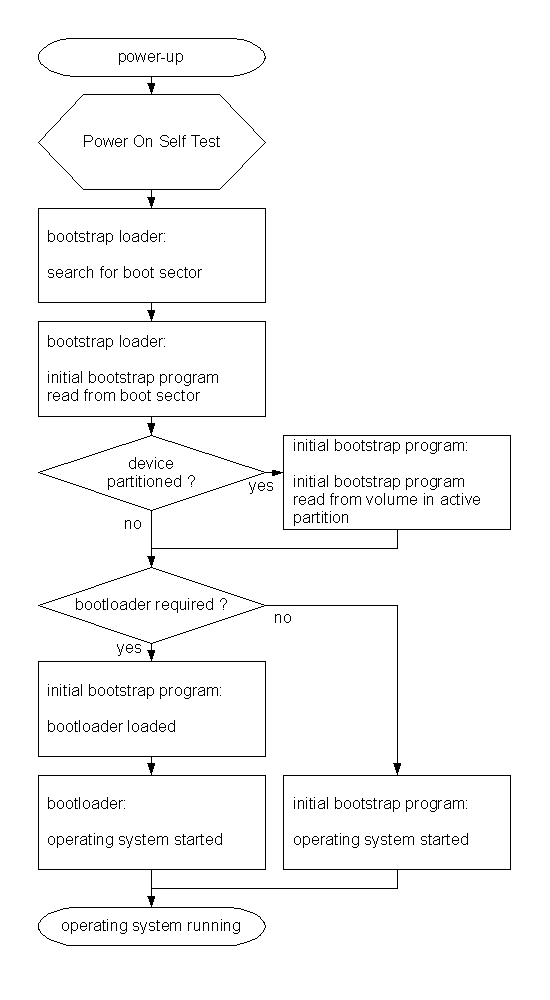

On power-up, when a computer is turned on, the following operations
are performed:
-
The computer performs a power on self test (POST) to
ensure that it meets the necessary system requirements and that
the hardware is working properly.
-
The computer boots: a
program located in
the ROM BIOS, called
the bootstrap loader, is executed.
-
The bootstrap loader searches the computer's
storage
devices for a
boot sector.
-
When the bootstrap loader finds the first
boot sector on
the primary bootable
device, it
loads it into
memory and
passes control to the initial bootstrap program in its
code area.
The boot sector contains a
program small enough
to fit into one
sector, known
as the initial bootstrap program.
When booting from a
partitioned
device, the initial bootstrap program normally reads the
boot sector,
containing the
volume boot
record, from the active
partition,
and then executes the initial bootstrap program in the
volume boot
record. When booting from a non-partitioned
device, there
is only one
volume, so the
initial bootstrap program loaded first is the
volume boot
record's initial bootstrap program.
-
The
volume boot
record's initial bootstrap program loads and runs further
software which is
used to start the
operating system.
Some operating systems,
such as Windows, have software built in to load from the
boot sector's
code area.
Others, such as Unix-like operating systems, cannot load
directly from the
boot sector's
code area and a
bootloader is used to start them.
Bootloaders available for the PC include:
|
|
